JIMMY540I'S POLARIS SLINGSHOT SL
(LATEST UPDATE ON 01/10/2021 - #24 IN "MODIFICATIONS")
(LATEST UPDATE ON 01/10/2021 - 12 NEW PICTURES IN "FUN WITH THE SLINGSHOT")
(UPDATE ON 08/12/2020 - #44 IN "MODIFICATIONS")




SPECIFICATIONS:

- YEAR: 2016
- MODEL: Slingshot SL
- COLOR: Pearl Red

DIMENSIONS / CAPACITIES:
- Dry Weight 1683 lbs.
- Curb Weight 1741 lbs.
- Overall Length (in/mm) 149.6 in/3800 mm
- Overall Width (in/mm) 77.6 in/1971 mm
- Overall Height (in/mm) 51.9 in/1318 mm
- Track Width (in/mm) 69.1 in/1755 mm
- Wheelbase (in/mm) 105.0 in/2667 mm
- Ground Clearance (in/mm) 5.0 in/127 mm

STANDARD FEATURES:
- 2.4 Liter DOHC Engine
- 5-Speed Manual Transmission
- High-Strength Steel Spaceframe
- 3-Point Seatbelts
- LED Taillights and Projector – Beam Headlights
- Double-Wishbone Front Suspension with Sway Bar
- Electronic Power-Assisted Steering
- Electronic Stability Control
- ABS Disk Brakes
- Tilt Steering
- Adjustable, Waterproof Seats
- Lockable Storage Bins and Glove Box

SL MODEL FEATURES (ON TOP OF THE SLINGSHOT BASE MODEL):
- Slingshot Red Pearl Paint
- Blade Wind Deflector
- Premium 18” Cast Aluminum Front Wheels
- 20” Cast Aluminum Rear Wheel

MEDIA CONSOLE : - 4.3” LCD Screen
- Backup Camera
- 6 Speaker Audio System
- Bluetooth® Integration

DRIVER AIDS:
- ABS (Anti-Lock Brakes)
- ESC (Electronic Stability Control)
- Traction Control

POWERTRAIN:
- Engine 2.4L DOHC
- Displacement (cid/cc) 2384 cc
- Bore and Stroke 88mm x 98m
- Compression Ratio 10.4:1
- Valve Train DOHC, VVT
- Fuel 91 octane or higher

PERFORMANCE:
- Rev Limit (RPM) 7000 RPM
- Peak Power (HP) [Modified = 195HP @ 6500 RPM] [Stock = 173 HP @ 6200 RPM]
- Peak Torque (lb-ft) [Modified = 177 lb-ft @ 4500 RPM] [Stock = 166 lb-ft @ 4700 RPM]

FLUID CAPACITY
- Fuel (Gallons/Liters) 9.77 Gallons / 37.1 Liters

BRAKES:
[Modified]
- Cross-Drilled-Brake-Rotors
- Upgraged Brake Pads
- Master Cylinder Support
[OEM]
- Brake Rotors (Front) Vented, 298mm diameter
- Brake Rotors (Rear) Vented, 298mm diameter

WHEELS AND TIRES 1: (SL MODELS ONLY - Wheels/tires are smaller & different design on base model):
- Front Tire Type: (OEM: Kenda 799)
- Front Tire Size: (OEM: 225/45/R18) (Modified: Michelin Pilot Super Sport Tries 225/45ZR/18)
- Front Wheel Type: Cast; 10 Spoke
- Front Wheel Size: 18 x 7.5 J
- Rear Tire Type: (OEM: Kenda 799)
- Rear Tire Size: (OEM: 255/35/R20) (Modified: Michelin Pilot Super Sport Tries 285/30ZR/20)
- Rear Wheel Type: Cast; 10 Spoke
- Rear Wheel Size: 20 x 9.0 J

WHEELS AND TIRES 2:
- Front Tire Type & Size: (Pirelli P-Zero P2501900 - 235/40ZR/19)
- Front Wheel Type: Rohana RFX11
- Front Wheel Size: 19 X 8.5 J
- Front Tire Type & Size: (Pirelli P-Zero P2617500 - 305/30ZR/20)
- Rear Wheel Type: Rohana RFX11
- Rear Wheel Size: 20 x 11 J

TRANSMISSION:
- Clutch Type Dry, Single Plate, Hydraulically Actuated
- Transmission Type 5 Speed Synchromesh with Reverse
- 1st Gear Ratio 3.753:1
- 2nd Gear Ratio 2.258:1
- 3rd Gear Ratio 1.512:1
- 4th Gear Ratio 1.000:1
- 5th Gear Ratio .729:1
- Reverse Gear Ratio 3.672:1
- Gear Shift Pattern H
- Bevel Drive Ratio 2.312:1
- Final Drive Type Carbon Fiber Reinforced Belt, 36mm x 147T
- Final Drive Ratio 1.590:1

STEERING:
- Actuation Rack-and-pinion
- Assist Polaris EPAS, Speed Sensitive
- Steering Turns, lock-to-lock 3.2

LIGHTING:
- LOWBEAMS / HIGHBEAMS H9 XENON HALOGEN UPGRADES (Center) @ DucatiXenon.com


- FOG-LIGHTS H3 (Outboard) - XENON HALOGEN UPGRADES @ DucatiXenon.com


- LED Tail/Brake Light
- LED Turn Signals - LED Back-up (Reverse) Lights
- LED License Plate Light
- LED Speedometer & Indicator Lights


MODIFICATIONS & ADD-ONS:

for polaris slingshot


CLICK ON DESCRIPTIONS TO SEE MODIFICATION DETAILS



1. XENON LIGHTS polaris slingshot

(BY DUCATIXENON.COM)

2. VELOCITY STREET SPORT SEATS [RED PEARL] (BY POLARIS OEM)
(Updated on 12/25/2019 with Before & After images / Originally updated on 10/25/2016)
polaris slingshot

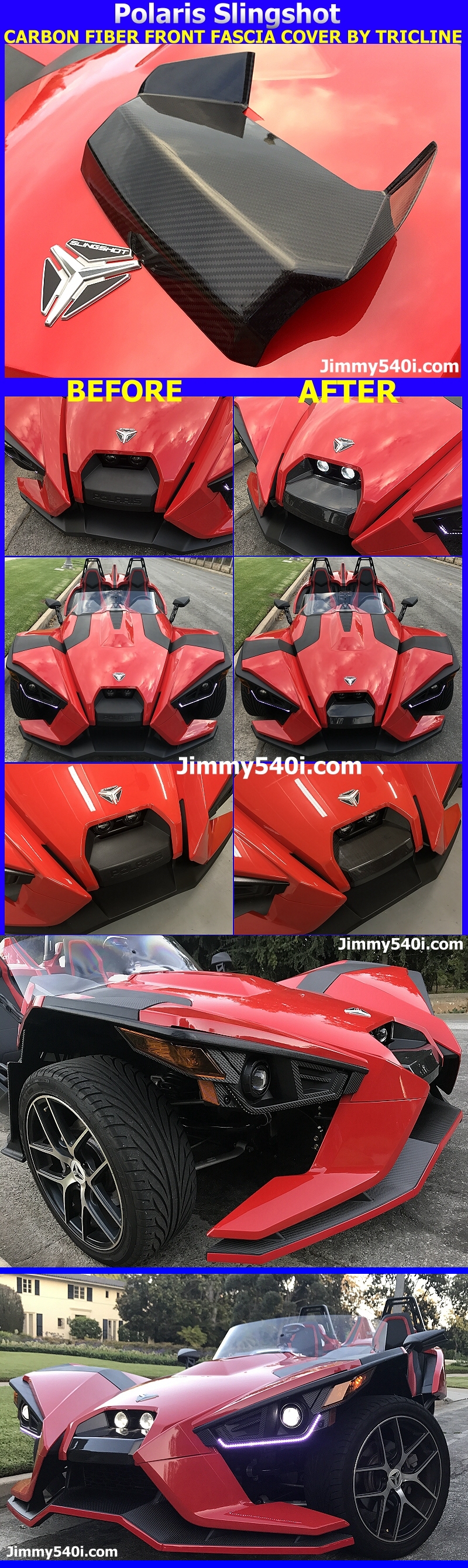

3. FRONT FASCIA COVER [GLOSSY-DOMED CARBON FIBER 1 PIECE] (BY TRICLINE)
(Updated on 10/25/2016)

polaris slingshot

4. REAR DECK HUMPS [GLOSSY-DOMED CARBON FIBER - 2 PIECES] (UNBRANDED FROM SLINGMODS)
(Updated on 02/18/2017)

polaris slingshot

5. REAR GARNISH ACCENT KIT [GLOSSY/DOOMED PEARL RED - 3 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

6. FRONT LOWER SPLITTER ACCENT [RED - 3 PIECES] & FRONT INNER SPLITTER PASSENGER/CENTER/DRIVER ACCENT KIT [RAW CARBON FIBER - 3 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

7. HOOD ACCENT PANELS [RAW CARBON FIBER - 8 PIECES] (BY TUFSKINZ)
(Updated on 11/18/2017)

polaris slingshot

8. SIDE VIEW MIRROR COVERS/UPPER ARM TRIMS/STRIPS/TRIMS KIT [RAW CARBON FIBER - 14 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

9. REAR CENTER CONSOLE / CENTER FILLER / CUP HOLDERS / SIDE ARM RESTS [RAW CARBON FIBER - 15 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

10. REAR BODY PANEL ACCENT KIT [RAW CARBON FIBER - 13 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

11. DASH BOARD ACCENT COVERS [RAW CARBON FIBER - 9 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

12. FRONT FENDER INNER & FLARE ACCENT KIT [RAW CARBON FIBER - 16 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

13. HEADLIGHT ACCENT / ASSEMBLY / RING [RAW CARBON FIBER - 22 PIECES] (BY TUFSKINZ)
(Updated on 11/08/2017)

polaris slingshot

14. STEERING WHEEL, RADIO DASHBOARD & BEZEL INSERTS ACCENTS [RAW CARBON FIBER - 6 PIECES] (BY TUFSKINZ)
(Updated on 02/18/2017)

polaris slingshot

15. ENTRY WAY, SPEAKER BOX & SIDE MIRRORS ACCENTS [RAW CARBON FIBER - 10 PIECES] (BY TUFSKINZ)
(Updated on 02/18/2017)

polaris slingshot

16. REAL TAIL FIN & BACK UP CAMERA ACCENTS [RAW CARBON FIBER - 2 PIECES] (BY TUFSKINZ)
(Updated on 02/18/2017)

polaris slingshot

17. DUCATI SUPERBIKE KEY CONVERSION
[Good to use if I need to carry out a few vehicle keys at the same time, factory key is way too big, click here for size comparions]

(Updated on 02/18/2017)
polaris slingshot

18. LED DAYTIME-RUNNING-LIGHTS [LOWER BROW] (BY TRICLED)
(Updated on 11/21/2015)

polaris slingshot

19. HEADLIGHT ON/OFF SWITCH KIT (BY TRICLED)
(Updated on 11/21/2015)

polaris slingshot

20. THE LOW/HIGH BEAMS & FOG LIGHTS SWITCH [HARNESS KIT] (FROM SLINGMODS)
(Updated on 07/16/2019)


polaris slingshot


21. FRONT LED PARKING LIGHTS
(Updated on 12/07/2015)

polaris slingshot


22. REAR LED PARKING LIGHTS
(Updated on 12/07/2015)

polaris slingshot


23. LOCKABLE GAS CAP [FUEL CAP] (MODIFIED FROM BRP CAN-AM SPYDER ROADSTER)
(Updated on 11/22/2015)

polaris slingshot

24. FLOOR MATS (RED) (BY TWIST DYNAMICS FROM SLINGSHOTONLY)
(Updated on 01/10/2021)

polaris slingshot

25. FLOOR MATS (ORANGE) (BY TWIST DYNAMICS FROM SLINGSHOTONLY)
(Updated on 12/07/2015)

polaris slingshot

26. GLOVE COMPARTMENT LIGHT (LED)
(Updated on 12/07/2015)

polaris slingshot

27. STEERING WHEEL LOCK
(Updated on 12/07/2015)

polaris slingshot

28. PLUS 3" WINDSHIELD (BY F4 CUSTOMS)
(Updated on 11/03/2016)


polaris slingshot

29. PADDED LEATHER CENTER CONSOLE ARM REST (BY DDMWORKS)
(Updated on 05/05/2016)

polaris slingshot

30. UPHOLSTERED AND PADDED GRAB HANDLE (BY DDMWORKS)
(Updated on 12/25/2019)


polaris slingshot

31. ALUMINIUM SS GLOVE BOX EMBLEM (FROM SLINGMODS)
(Updated on 10/24/2016)

polaris slingshot

32. SPARCO SHIFT KNOB (BY POLARIS OEM)
(Updated on 11/08/2017)

for polaris slingshot

33. LEATHER SHIFT BOOT FOR POLARIS SLINGSHOT [WITH RED STITCHINGS] (BY STATUS RACING)
(Updated on 02/07/2016)
for polaris slingshot

34. E-BRAKE HANDLE (BY NRG) & E-BRAKE BOOT [WITH RED STITCHINGS] (BY STATUS RACING)
(Updated on 04/08/2020)
for polaris slingshot

35. SIGNAL LEVER EXTENDER (BY ASSULT INDUSTRIES)
(Updated on 02/07/2016)
for polaris slingshot

36. MIRROR [180 DEGREE PARABOLIC REAR VIEW] (FROM SLINGSHOTONLY)
(Updated on 02/07/2016)
for polaris slingshot

37. PEDAL COVERS [GAS / BRAKE / CLUTCH PEDALS] (BY ASSAULT INSDUSTRIES)
(Updated on 02/07/2016)
for polaris slingshot

38. DEAD PEDAL [FOOT REST COVER] (ASSAULT INSDUSTRIES FITTED)
(Updated on 05/05/2016)
for polaris slingshot

39. BELT GUARD COVER [RED PEARL (BY POLARIS OEM)
(Updated on 05/05/2016)
for polaris slingshot

40. PARKING BRAKE / E-BRAKE SPRING COVER (BY BULLET SPEED)
(Updated on 08/05/2019)

for polaris slingshot

41. MICHELIN PILOT SUPER SPORT TIRE [REAR: 285/30/ZR20]
(Updated on 10/08/2017)
for polaris slingshot

42. MICHELIN PILOT SUPER SPORT TIRES
[FRONT: 225/45/ZR18 & REAR: 255/35/ZR20]

(Updated on 08/24/2016)
for polaris slingshot

43. ROHANA RFX11 WHEELS:
[FRONT: 19 X 8.5 J & REAR: 20 X 11 J]

PIRELLI P-ZERO TIRES:
[FRONT: 235/40ZR/19 -P2501900- & REAR: 305/30ZR/20 -P2617500-]

(Updated on 07/16/2019)

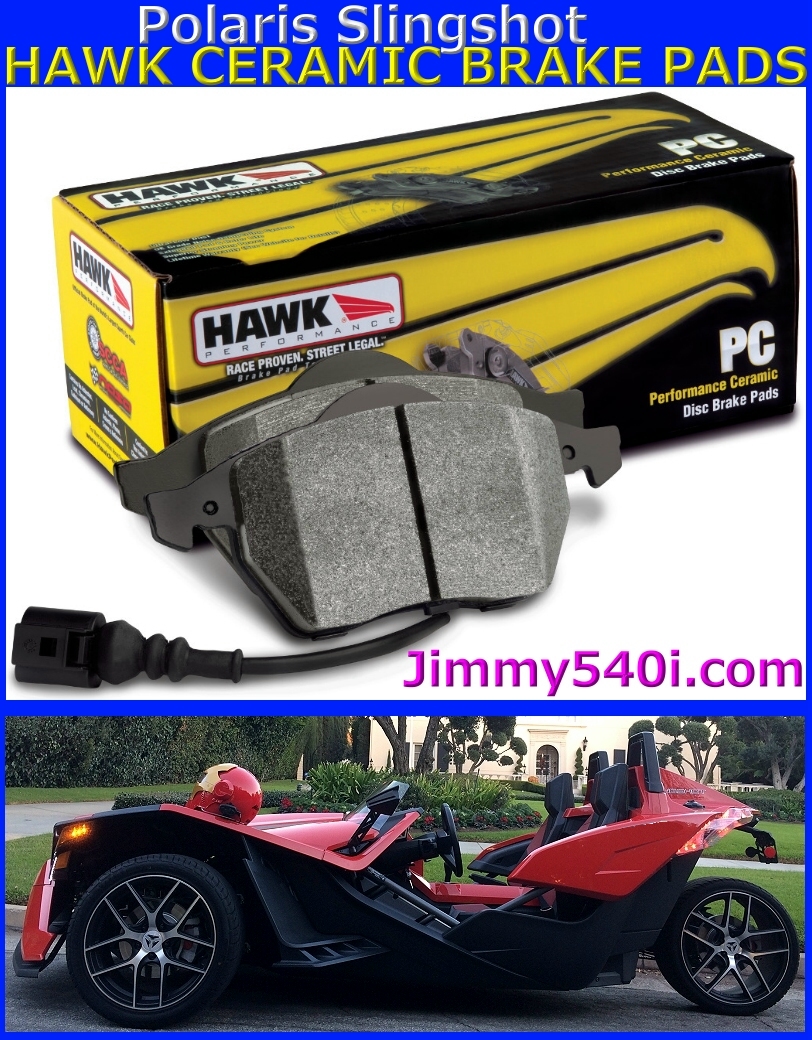

44. CERAMIC BRAKE PADS FOR POLARIS SLINGSHOT(BY HAWK PERFORMANCE)
(Updated on 03/06/2016)
for polaris slingshot

45. CROSS-DRILLED BRAKE ROTORS (BY DDMWORKS)
(Updated on 08/12/2020)
for polaris slingshot

46. MASTER CYLINDER SUPPORT [ADJUSTABLE]
(BY DDMWORKS)
(Updated on 08/24/2016)

for polaris slingshot

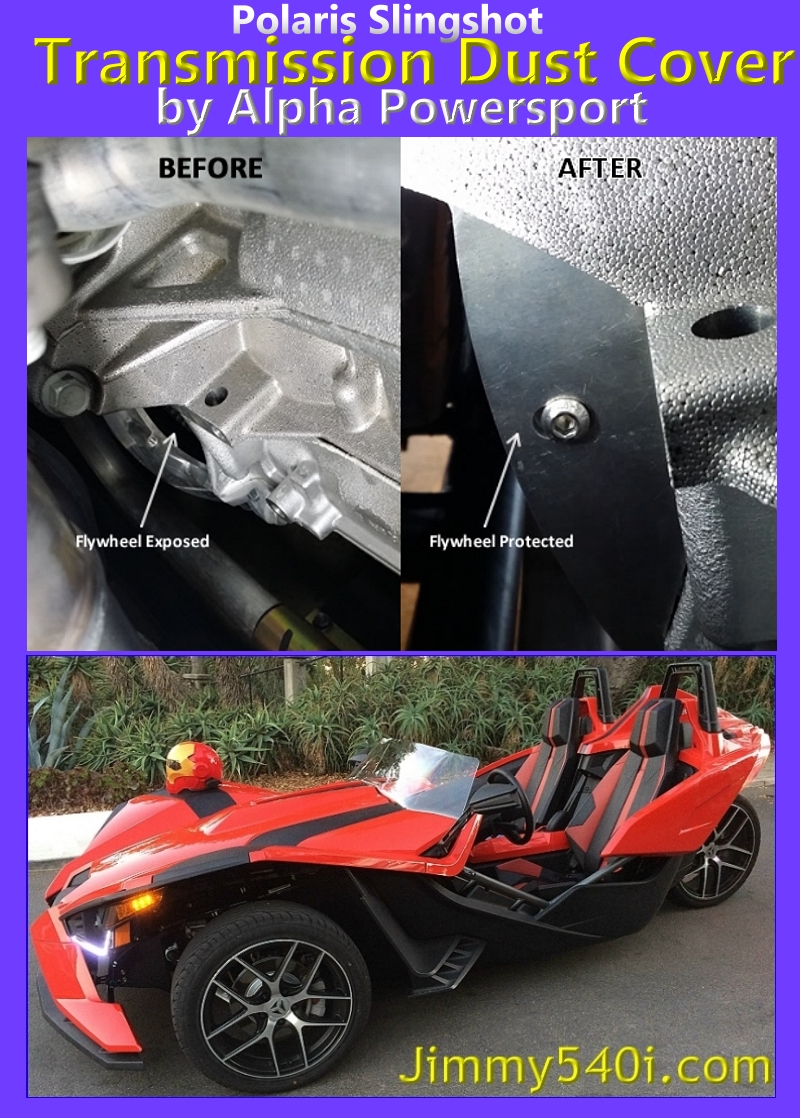

47. TRANSMISSION DUST COVER (BY ALPHA)
(Updated on 06/07/2016)

for polaris slingshot

48. SWINGARM ROCK GUARD (BY TRICLED)
(Updated on 06/07/2016)

for polaris slingshot

49. AIR-FILTER (BY K&N)
* BEFORE THE INSTALLTION OF MOD #50 (COLD AIR-INTAKE SYSTEM) *
(Updated on 03/01/2016)

for polaris slingshot

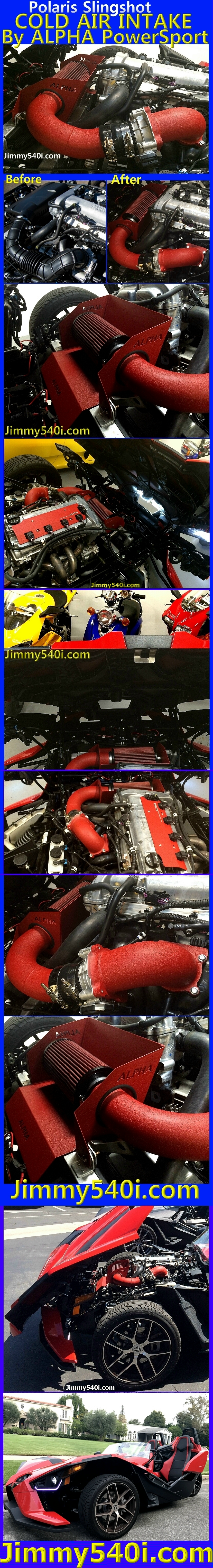

50. COLD AIR INTAKE SYSTEM (BY ALPHA)
(Updated on 03/06/2016)

for polaris slingshot

51. ALUMINUM SURGE TANK [COOLANT RESERVOIR] (BY DDMWORKS)
(Updated on 10/24/2016)

for polaris slingshot

52. ECU (ECM) REFLASH (BY OBD DIAGNOSTICS, INC.)
(Updated on 05/01/2016)

for polaris slingshot

53. BIG MOUTH TWIN RAM AIR INLET SYSTEM (BY VELOSSATECH)
(Updated on 07/16/2019)

for polaris slingshot

54. SPARK PLUGS (LASER IRIDIUM SPARK PLUGS FOR POLARIS SLINGSHOT) (BY NGK)
(Updated on 08/16/2016)

for polaris slingshot

55. COIL PACK COVER (BY ALPHA)
(Updated on 06/07/2016)

for polaris slingshot

56. FIRE WALL FINISH PANEL (BY DDMWORKS)
(Updated on 07/16/2019)

for polaris slingshot

57. ENGINE HEAT SHIELD (BY POLARIS OEM)
(Updated on 08/05/2019)

for polaris slingshot

58. HEADERS (BY 1320 PERFORMANCE)
(Updated on 02/07/2016)

for polaris slingshot

59. EXHAUST [TRIO ADJUSTABLE EXHAUST] (BY FAB FACTORY)
(Updated on 02/07/2016)

for polaris slingshot

60. VENTED HOOD INSERT FOR POLARIS SLINGSHOT (BY BULLET SPEED )
(Updated on 11/17/2016)

for polaris slingshot




OK. On with the pictures!

Please check "Fun with the Slingshot Pictures" at the bottom of this page :-)





"Fun with the Slingshot":
